Introduction of Amazon Elastic Compute Cloud (EC2) in this blog You will learn EC2 It’s an Amazon Elastic Compute Cloud and will explore the tools and practices wont to fully leverage the ability of the EC2 ecosystem.

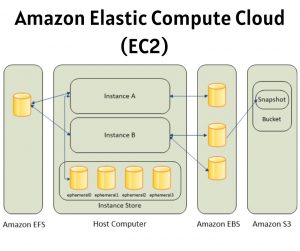

Amazon Elastic Compute Cloud (EC2)
The ultimate focus of a standard data centre/server room is its precious servers. But, to create those servers useful, you’ll got to add racks, power supplies, cabling, switches, firewalls, and cooling. AWS’s Elastic Compute Cloud (EC2) is intended to copy the info centre/server room experience as closely as possible. At the middle of it all is that the EC2 virtual server, referred to as an instance. But, just like the local server room I just described, EC2 provides a variety of tools meant to support and enhance your instance’s operations.
This chapter will explore the tools and practices wont to fully leverage the ability of the EC2 ecosystem, including the following:
– Provisioning an EC2 instance with the proper hardware resources for your project
– Configuring the proper base OS for your application needs
– Building a secure and effective network environment for your instance
– Adding scripts to run because the instance boots to support (or start) your application
– Choosing the simplest EC2 pricing model for your needs
– Understanding the way to manage and leverage the EC2 instance lifecycle
– Choosing the proper storage drive type for your needs
– Securing your EC2 resources using key pairs, security groups, and Identity and Access Management (IAM) roles
– Accessing your instance as an administrator or end-user client
EC2 Instances
An EC2 instance may only be a virtualized and abstracted subset of a physical server, but it behaves a bit like the important thing. It’ll have access to storage, memory, and a network interface, and its primary drive will accompany a fresh and clean OS running. It’s up to you to make a decision what quite hardware resources you would like your instance to possess , what OS and software stack you’d love it to run, and, ultimately, what quantity you’ll buy it. Let’s see how all that works.
Provisioning Your Instance
You configure your instance’s OS and software stack, hardware specs (the CPU power, memory, primary storage, and network performance), and environment before launching it. The OS is defined by the Amazon Machine Image (AMI) you select , and therefore the hardware follows the instance type.
Also Read : Services Related Elastic Compute Cloud (EC2)
Related Product : AWS Certified Solutions Architect | Associate
EC2 Amazon Machine Images
An AMI is basically just a template document that contains information telling EC2 what OS and application software to incorporate on the basis data volume of the instance it’s close to launch. There are four sorts of AMIs.
Amazon Quick Start AMIs
Amazon Quick Start images appear at the highest of the list within the console once you start the method of launching a replacement instance. the fast Start AMIs are popular choices and include various releases of Linux or Windows Server OSs and a few specialty images for performing common operations (like deep learning and database). These AMIs are up-to-date and officially supported.
AWS Marketplace AMIs
AMIs from the AWS Marketplace are official, production-ready images provided and supported by industry vendors like SAP and Cisco.
Community AMIs
There are quite 100,000 images available as Community AMIs. Many of those images are AMIs created and maintained by independent vendors and are usually built to satisfy a selected need. this is often an honest catalog to look if you’re planning an application built on a custom combination of software resources.
Private AMIs
You can also store images created from your own instance deployments as private AMIs. Why would you would like to try to that? you would possibly , as an example , want the power to proportion the amount of instances you’ve got running to satisfy growing demand. Having a reliable instance image as an AMI makes incorporating auto scaling easy. you’ll also share images as AMIs or import VMs from your local infrastructure (by way of AWS S3) using the AWS VM Import/Export tool. a specific AMI are going to be available in just one region—although there’ll often be images with identical functionality altogether regions. Keep this in mind as you propose your deployments: invoking the ID of an AMI in one region while performing from within a special region will fail.

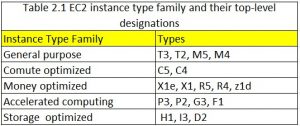

Instance Types
AWS allocates hardware resources to your instances consistent with the instance type—or hardware profile—you select. the actual workload you’re planning for your instance will determine the sort you select . the thought is to balance cost against your need for compute power, memory, and space for storing . Ideally, you’ll find a kind that gives precisely the amount of every to satisfy both your application and budget. Should your needs change over time, you’ll easily move to a special instance type by stopping your instance, editing its instance type, and starting it copy again.
There are currently quite 75 instance types organized into five instance families, although AWS frequently updates their selection. you’ll view the foremost recent collection at https://aws.amazon.com/ec2/instance-types/.
General Purpose
The General Purpose family includes T3, T2, M5, and M4 types, which all aim to supply a balance of compute, memory, and network resources. T2 types, as an example, range from the t2.nano with one virtual CPU (vCPU0) and half a gigabyte of memory all the high to the t2.2xlarge with its eight vCPUs and 32 GB of memory. Because it’s Free Tier–eligible, the t2.micro is usually an honest choice for experimenting. But there’s nothing stopping you from using it for light-use websites and various development-related services.
M5 and M4 instances are recommended for several small and midsize data-centric operations. Unlike T2, which needs EBS virtual volumes for storage, some M* instances accompany their own instance storage drives that are literally physically attached to the host server. M5 types range from m5.large (2 vCPUs and 6 GB of memory) to the monstrous m5d.24xlarge (96 vCPUs and 382 GB of memory).
Compute Optimized
For more demanding web servers and high-end machine learning workloads, you’ll choose between the Compute Optimized family that has C5 and C4 types. C5 machines—currently available from the c5.large to the c5d.18xlarge—give you the maximum amount as 3.5 GHz of processor speed and powerful network bandwidth.
Memory Optimized
Memory Optimized instances work well for intensive database, data analysis, and caching operations. The X1e, X1, and R4 types are available with the maximum amount as 3 terabytes of DRAM-based memory and low-latency SSD storage volumes attached. Accelerated Computing you’ll achieve higher-performing general-purpose graphics processing unit (GPGPU) performance from the P3, P2, G3, and F1 types within the Accelerated Computing group. These instances make use of varied generations of high-end NVIDIA GPUs or, within the case of the F1 instances, a Xilinx Virtex UltraScale+ field-programmable gate array (FPGA—if you don’t know what that’s , then you almost certainly don’t need it).
Accelerated Computing
Instances are recommended for demanding workloads like 3D visualizations and rendering, financial analysis, and computational fluid dynamics.
Storage Optimized
The H1, I3, and D2 types currently structure the Storage Optimized family that have large, low-latency instance storage volumes—as large as 16 TB (or, within the case of D2, up to 48 TB of slower HDD storage). These instances work well with distributed file systems and heavyweight processing applications. The specification details and instance type names will frequently change as AWS continues to leverage new technologies to support its customers’ growing computing demands. But it’s important to a minimum of be conversant in the instance type families and therefore the naming conventions AWS uses to spot them.
Questions related to this topic
- What is an instance AWS?
- How does AWS ec2 work?
- How do I find my ec2 instance type?
- How much RAM does AWS have?
